Spark Control X is a foot controller designed for use with Positive Grid's Spark LIVE, Spark, Spark MINI, and Spark GO amps. It features 6 steel switches with an aluminum housing and rubber side panels, multi-color LEDs for status indication, 2 expression pedal inputs, and more.
Maximum Control for Spark Series Amps
6-Switch Wireless Footswitch
The next generation of Spark Control is here. Easily swap presets, toggle effects, and so much more with the 6-switch customizable Spark Control X, the official wireless footswitch for Spark series guitar amps.
$159
Estimated delivery between Aug 11 - Aug 13
2 Years Guarantee
Online Support
30-Day Return
Free Shipping $99+ (Select Regions)
Maximum Control for Spark Series Amps
The next generation of Spark Control is here. Easily swap presets, toggle effects, and so much more with the 6-switch customizable Spark Control X, the official wireless footswitch for Spark series guitar amps.
Wireless
Control
2 TRS expression pedal inputs and transparent overlays for easy switch labeling.
Expression
Pedal Support
6 customizable switches wirelessly swap presets, toggle effects, control music and more.
Rechargeable
Battery
Enjoy up to 150 hours of playtime on a single charge.
Seamless
Connectivity
Quick plug & play setup with all Spark series amps.
More power.
More possibilities.
Take control of your Spark series amp like never before with Spark Control X, featuring 6 customizable foot switches, enhanced functionality, and a range of advanced customization features.
Seamless connectivity.

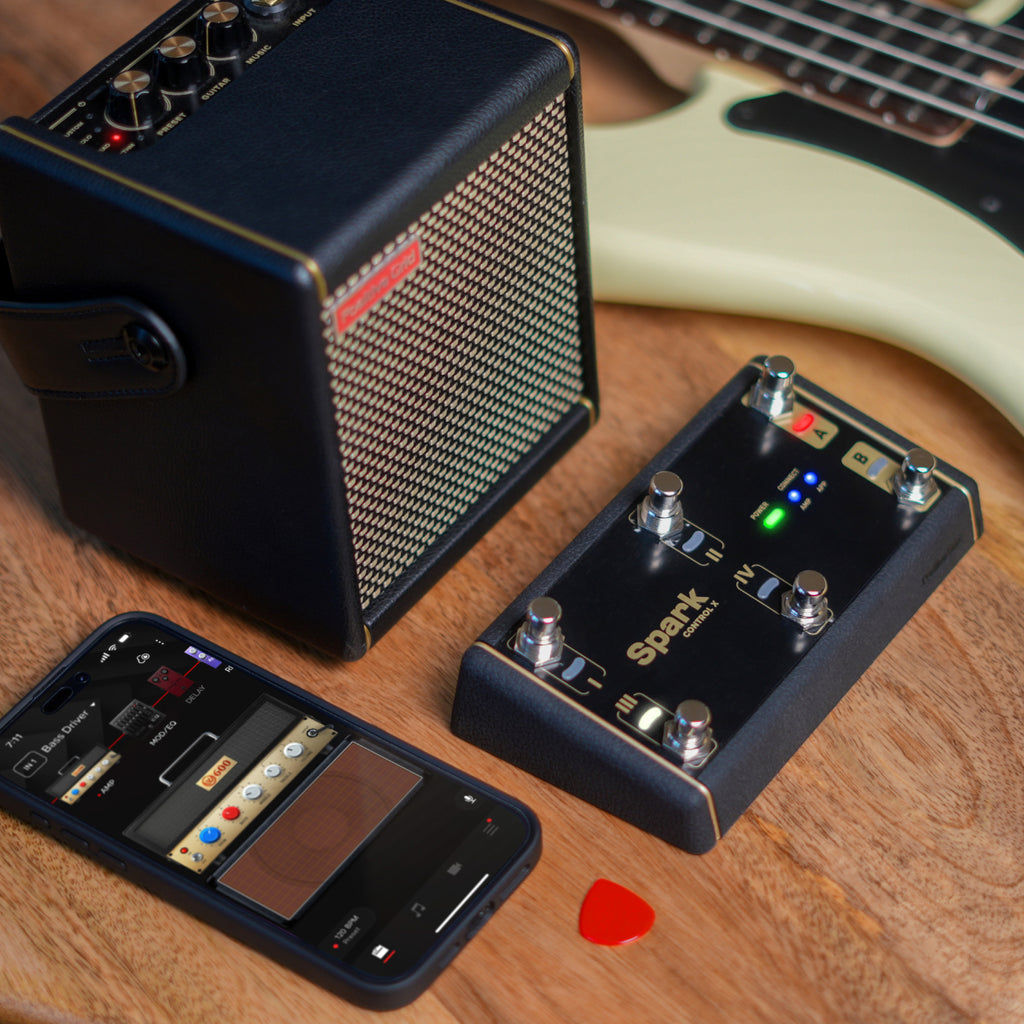

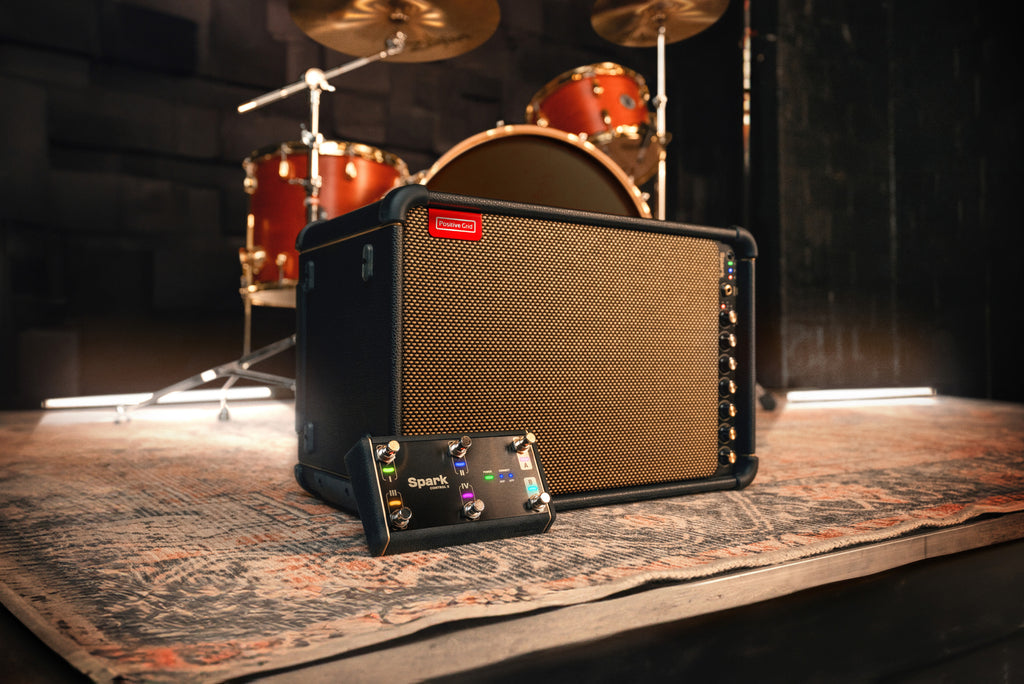

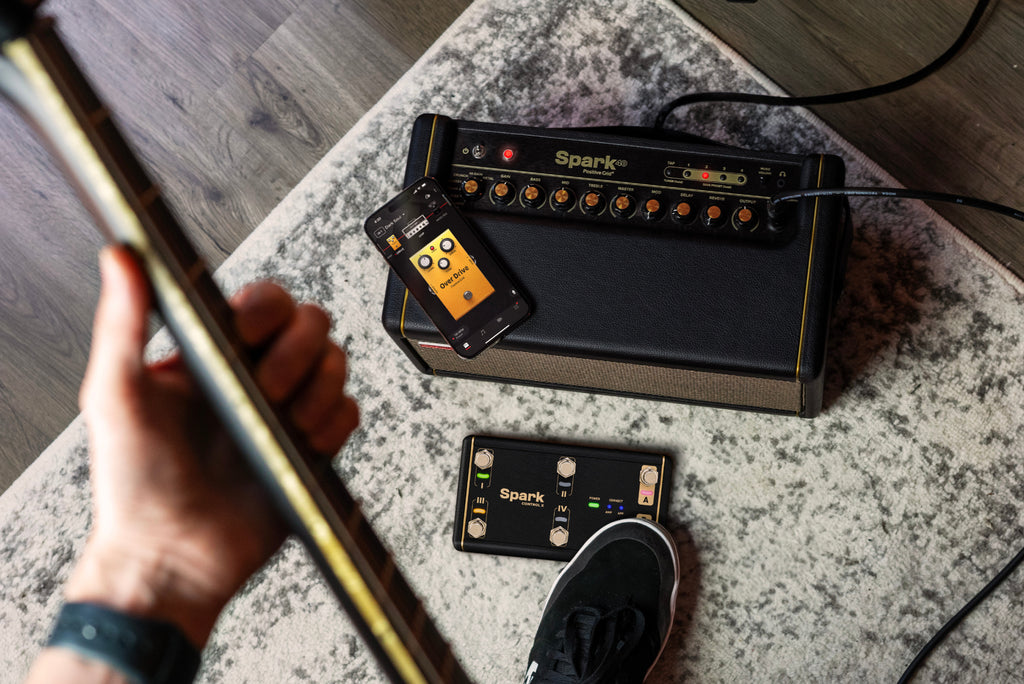

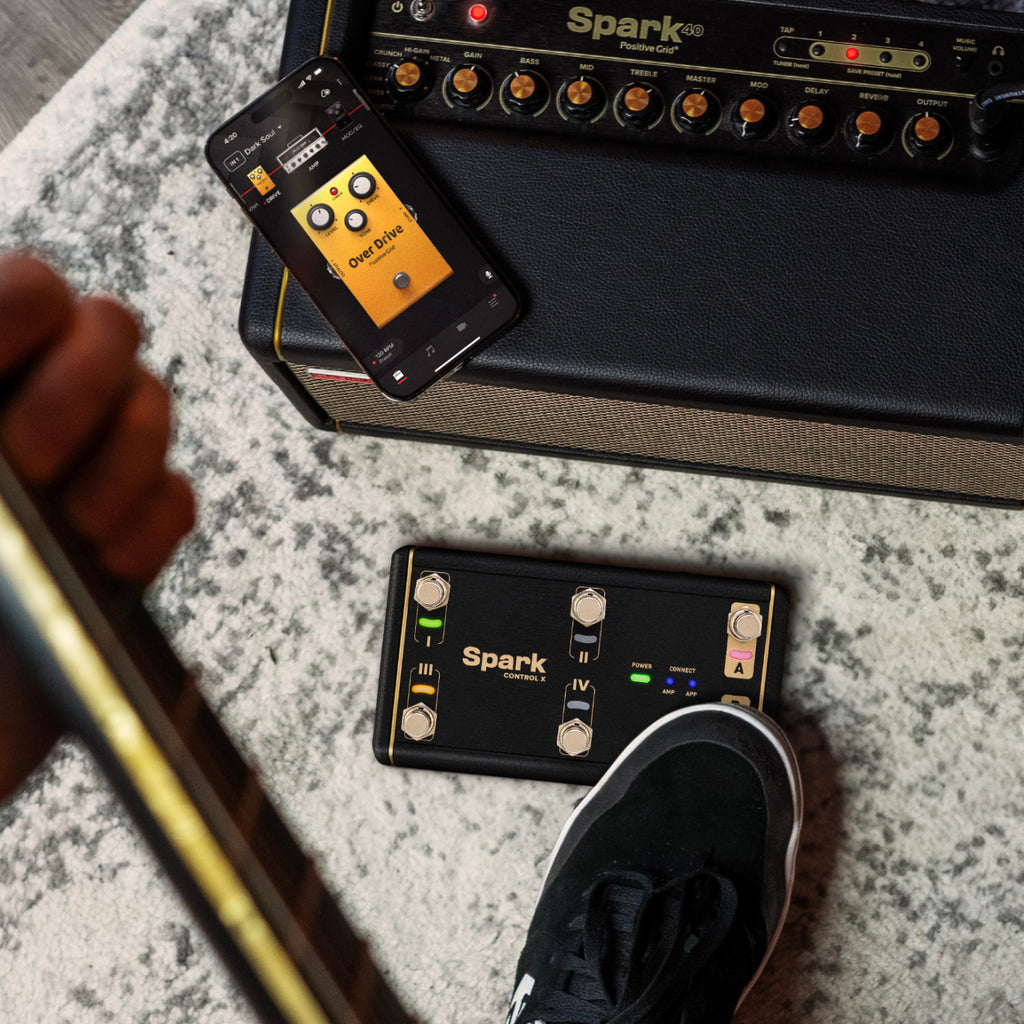

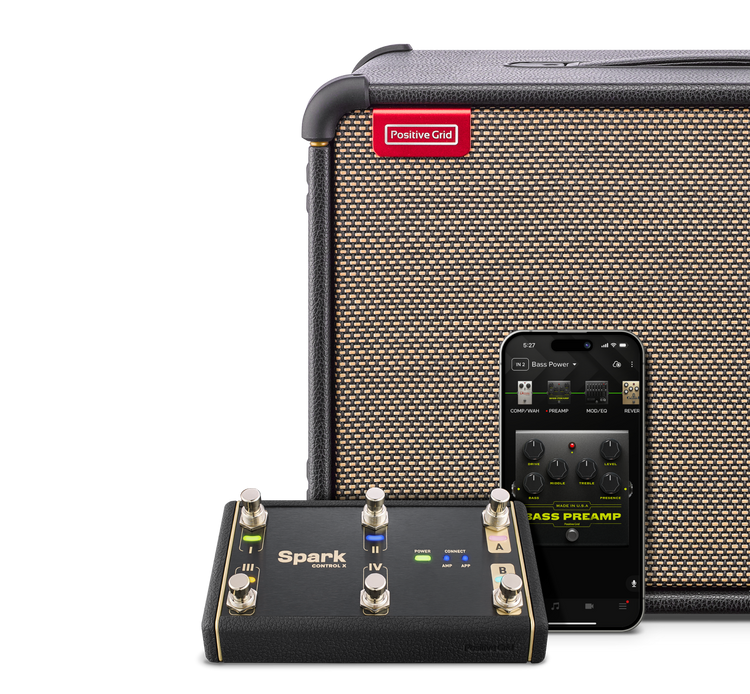

Spark Control X seamlessly connects to all Spark series amps through the Spark app, offering full control over your tone and jam sessions. For Spark LIVE users, enjoy the added benefit of direct hardware connectivity, no app required.
Complete control.

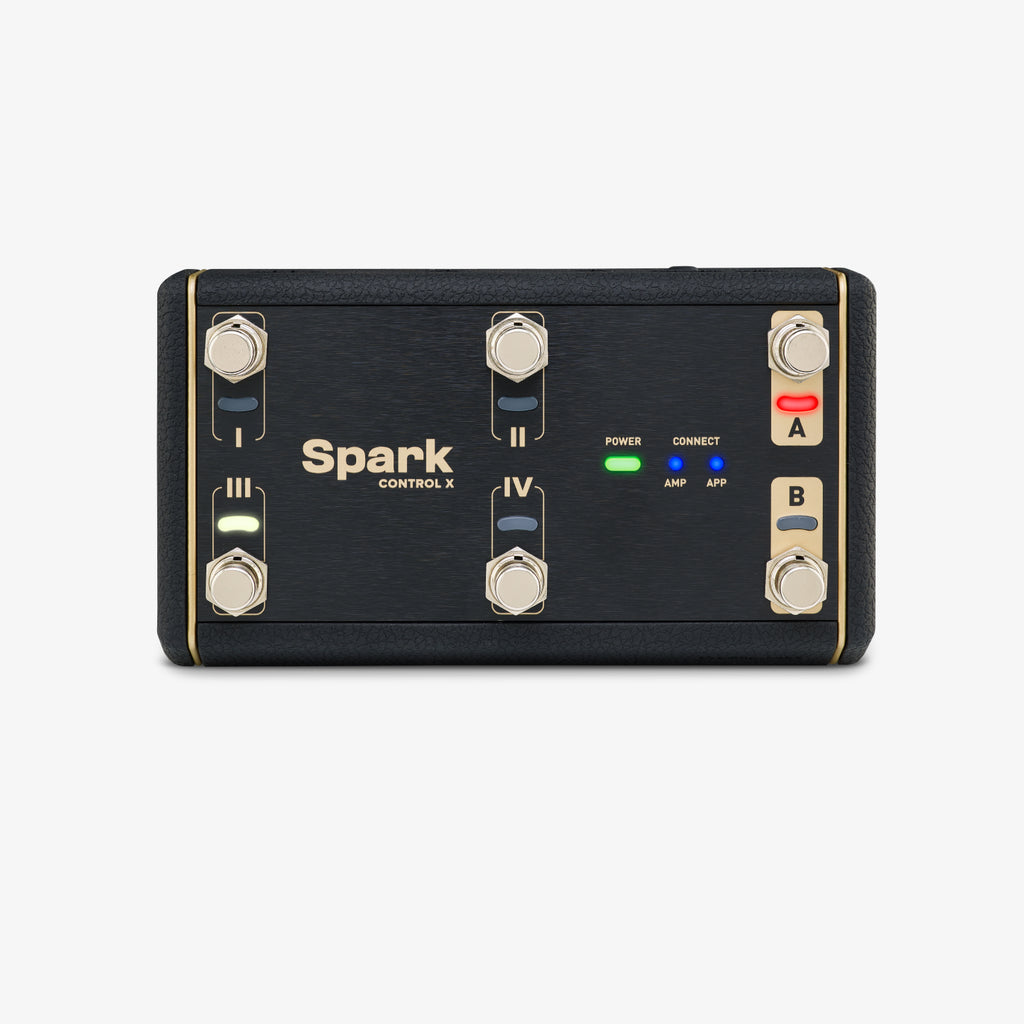

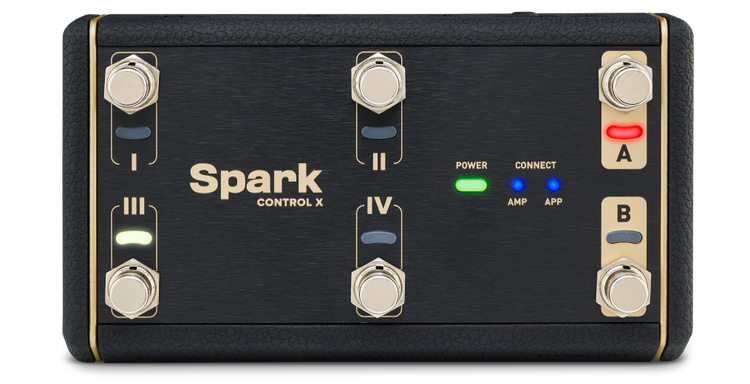

Spark Control X features 6 customizable footswitches each equipped with multi-color LED indicators that come pre-programmed right out of the box. Start jamming instantly without lifting a finger.
Each switch can be assigned to a specific pedal in your signal chain in the Spark app.
The LED of each switch will indicate if the pedal is on or off.
Switches I-IV can be assigned a hardware preset that can be customized in the Spark app.
Switch A swaps to the next preset and Switch B swaps to the previous.
Overlays

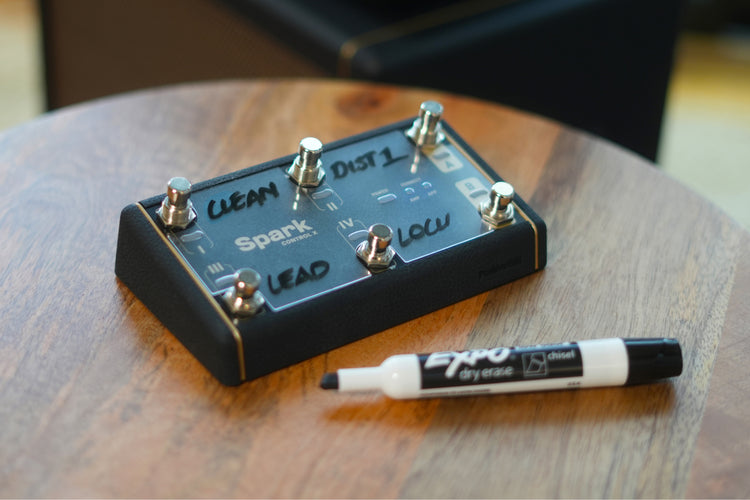

Spark Control X includes 3 transparent overlays that fit perfectly over the face of the pedal. Customize them as you wish to instantly recall and access your favorite functions.

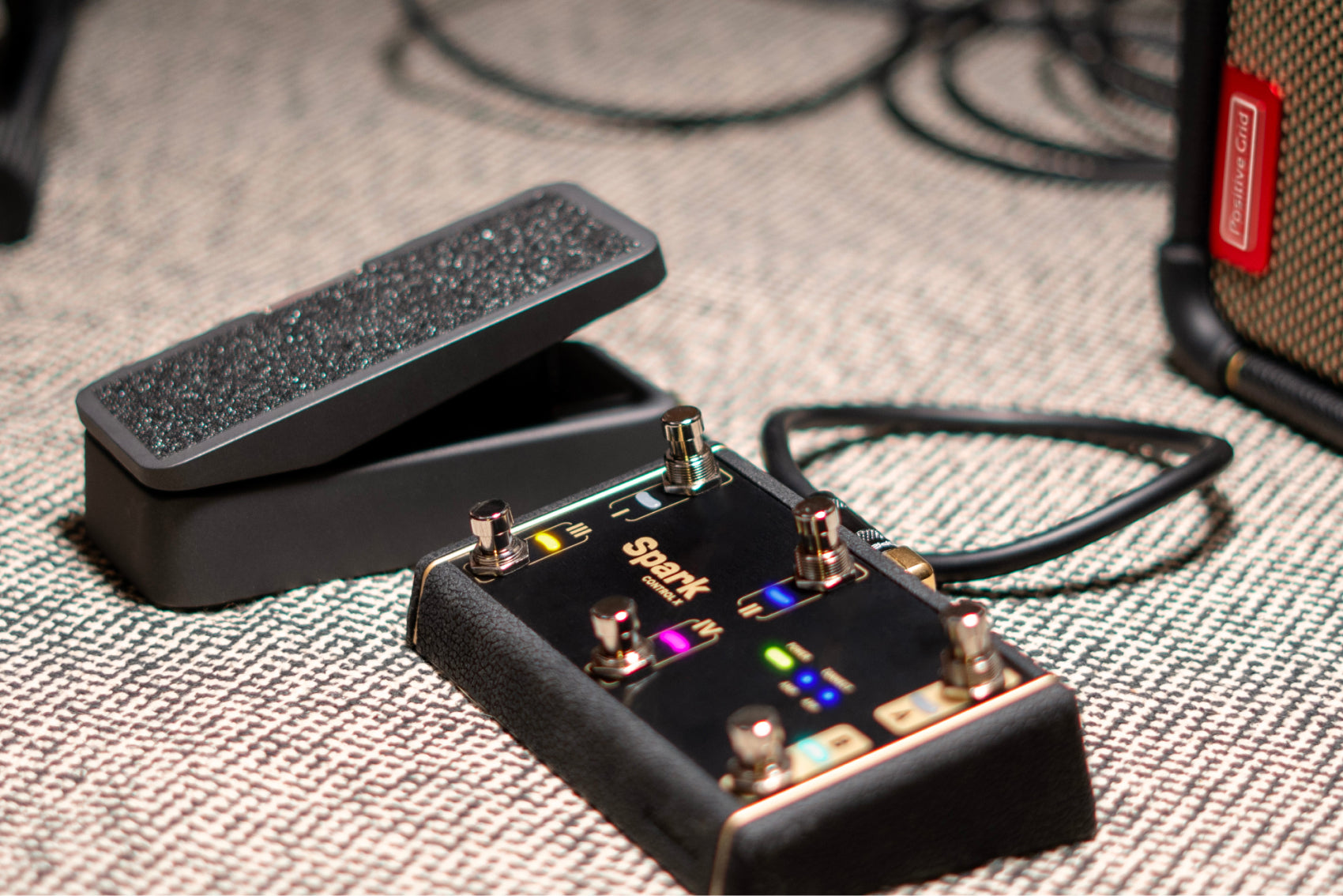

Expression pedal inputs.

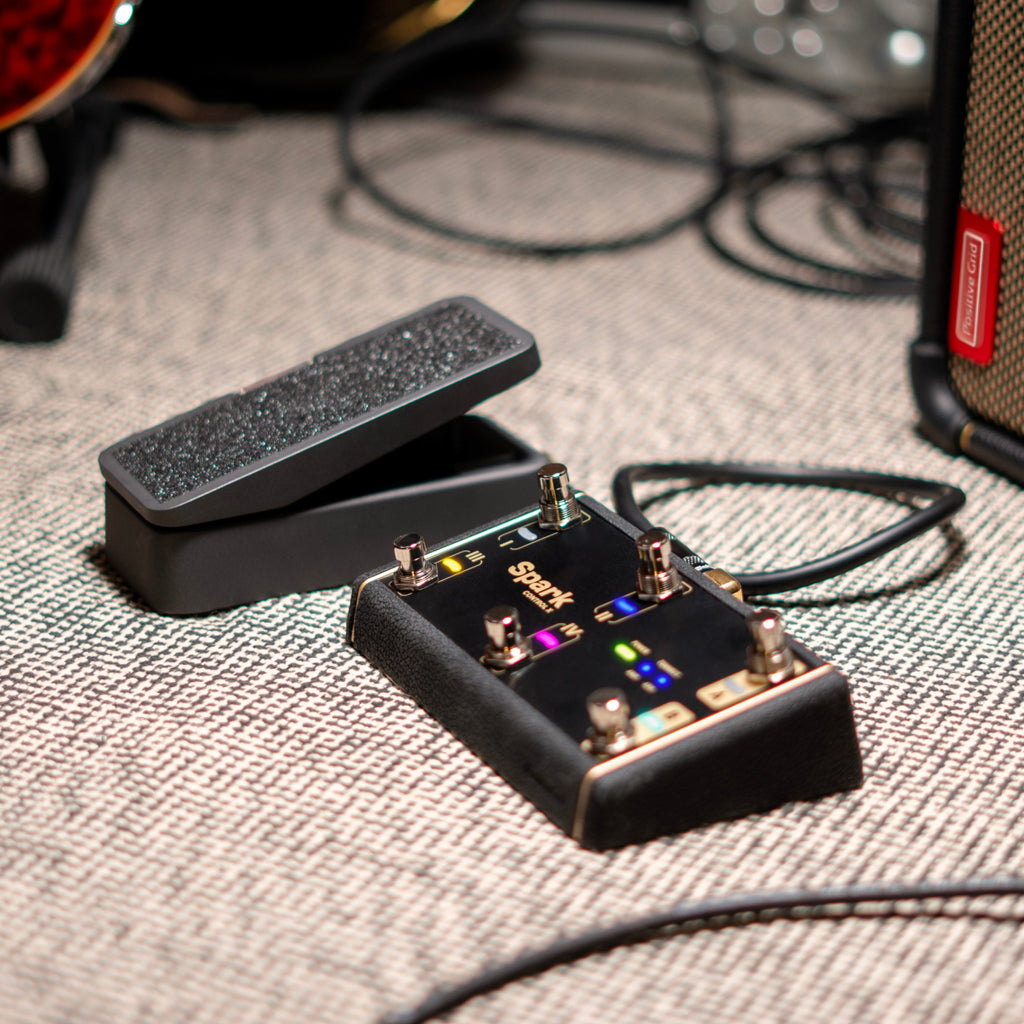

Craft your signature sound in the Spark app like never before by plugging in up to 2 TRS type expression pedals¹ directly into Spark Control X to manipulate channel volume and wah² in the Spark app.

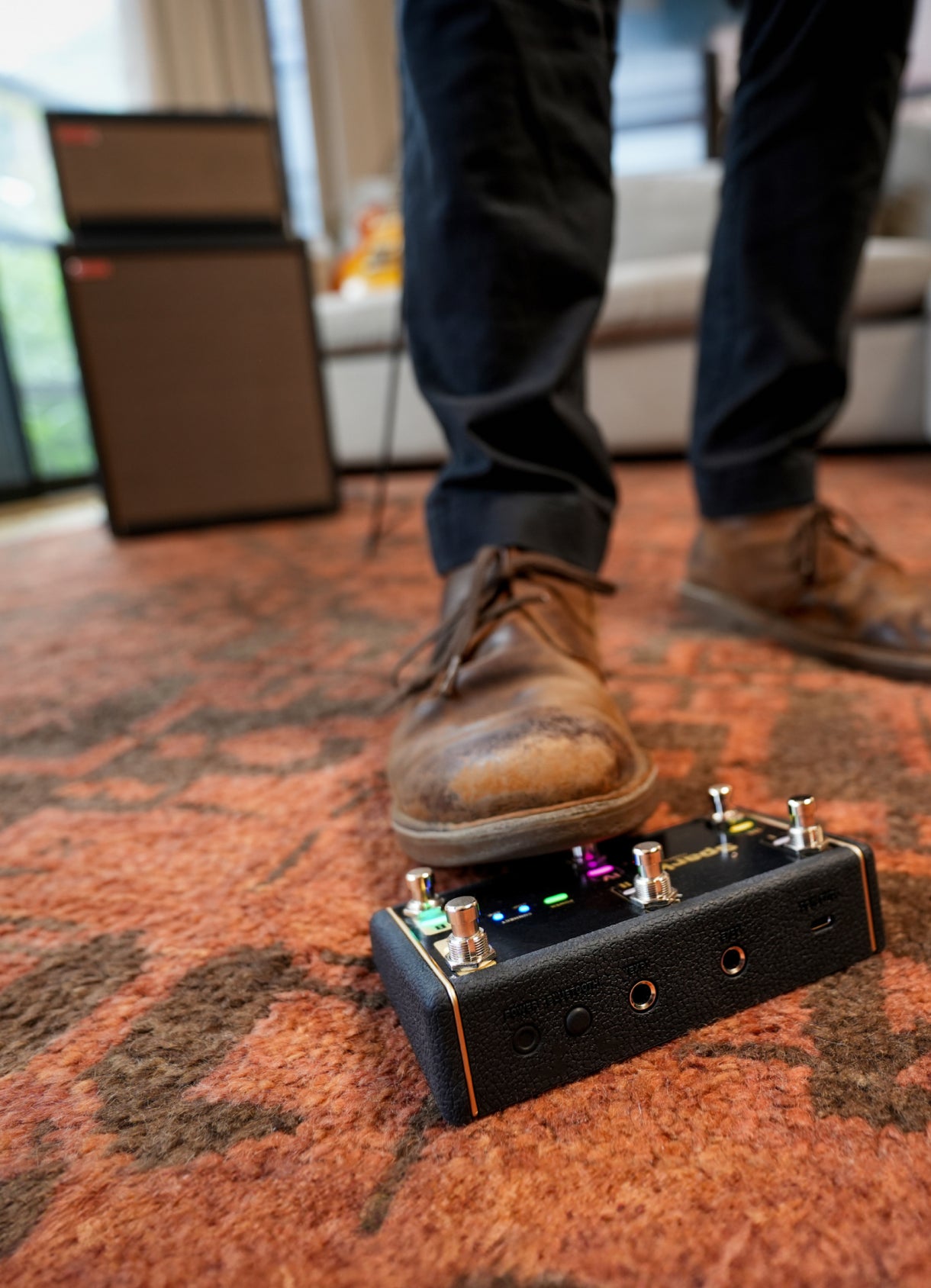

Built like a tank.

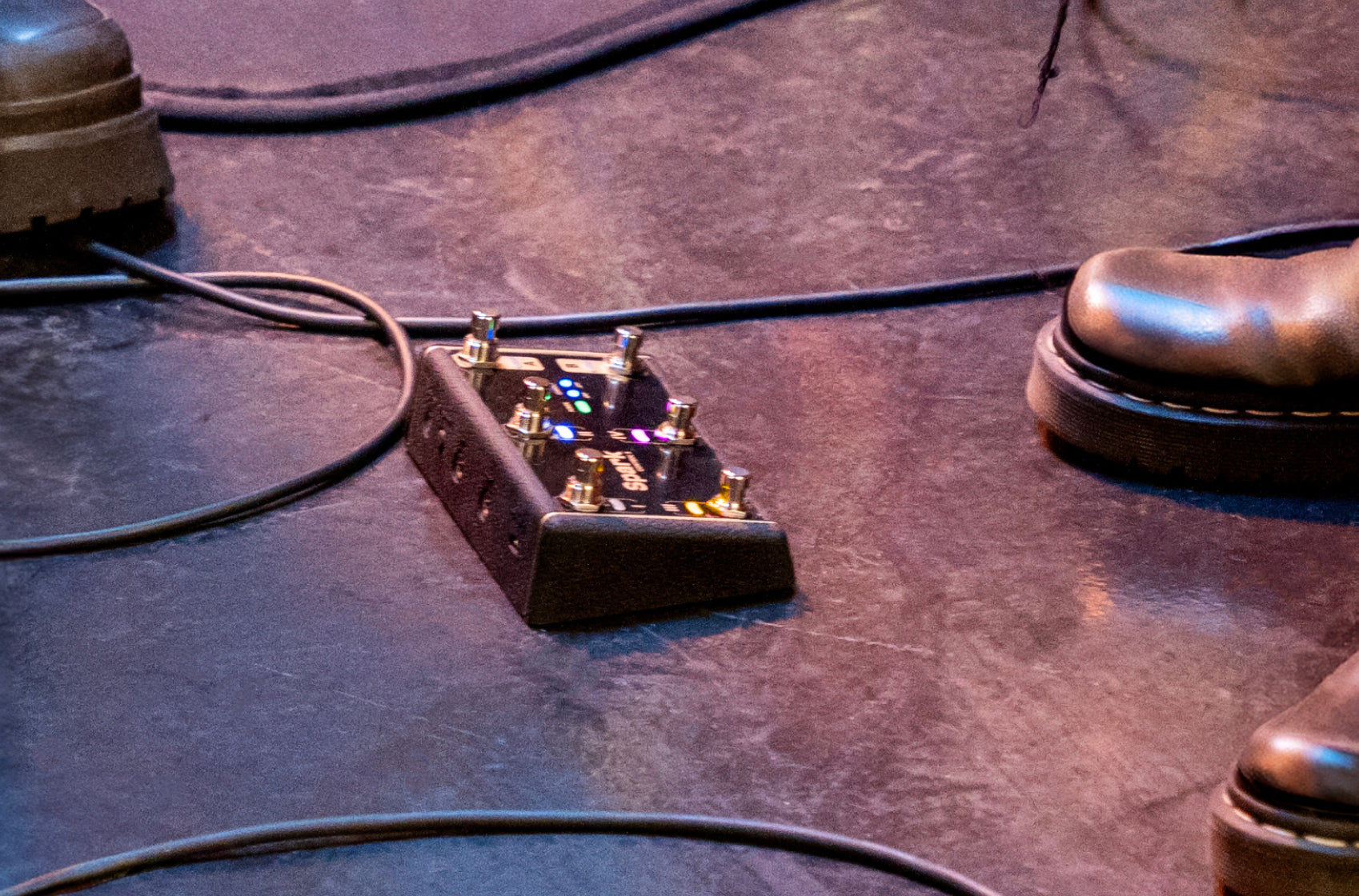

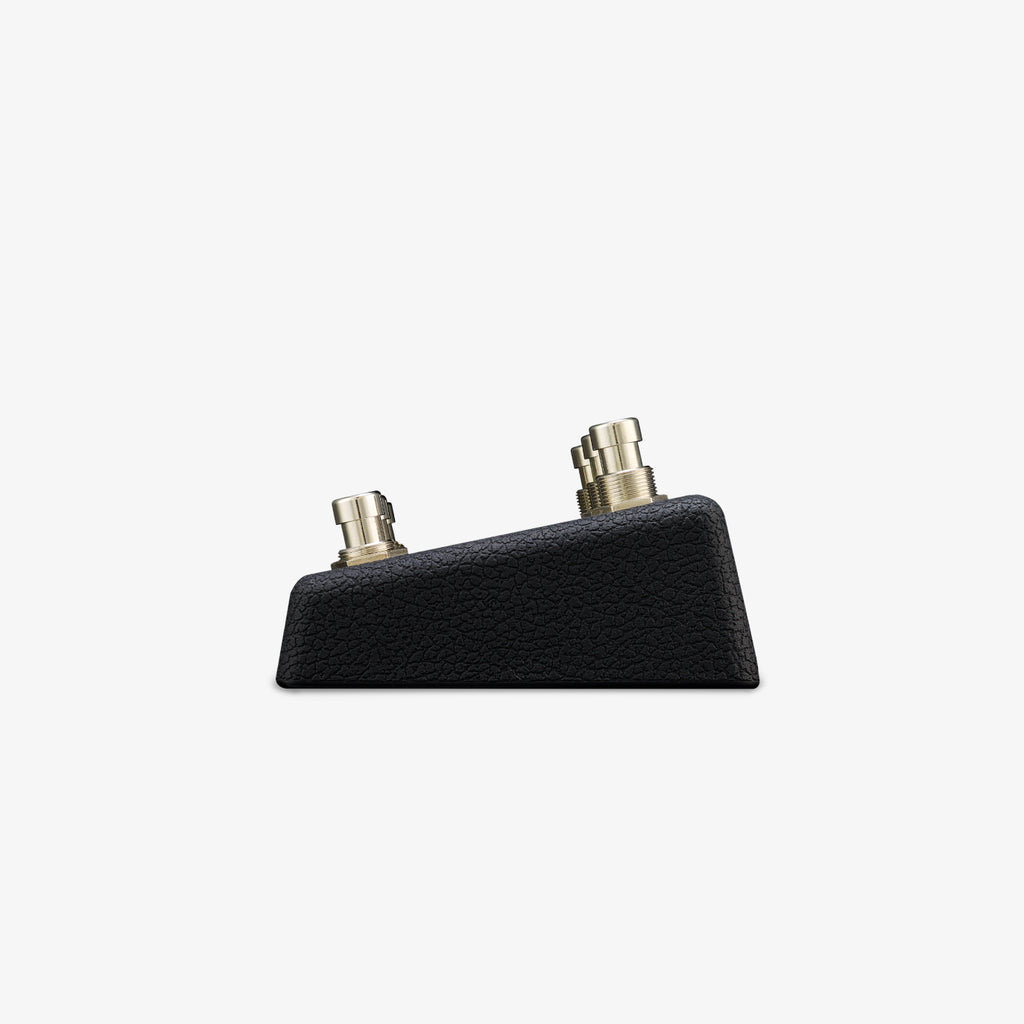

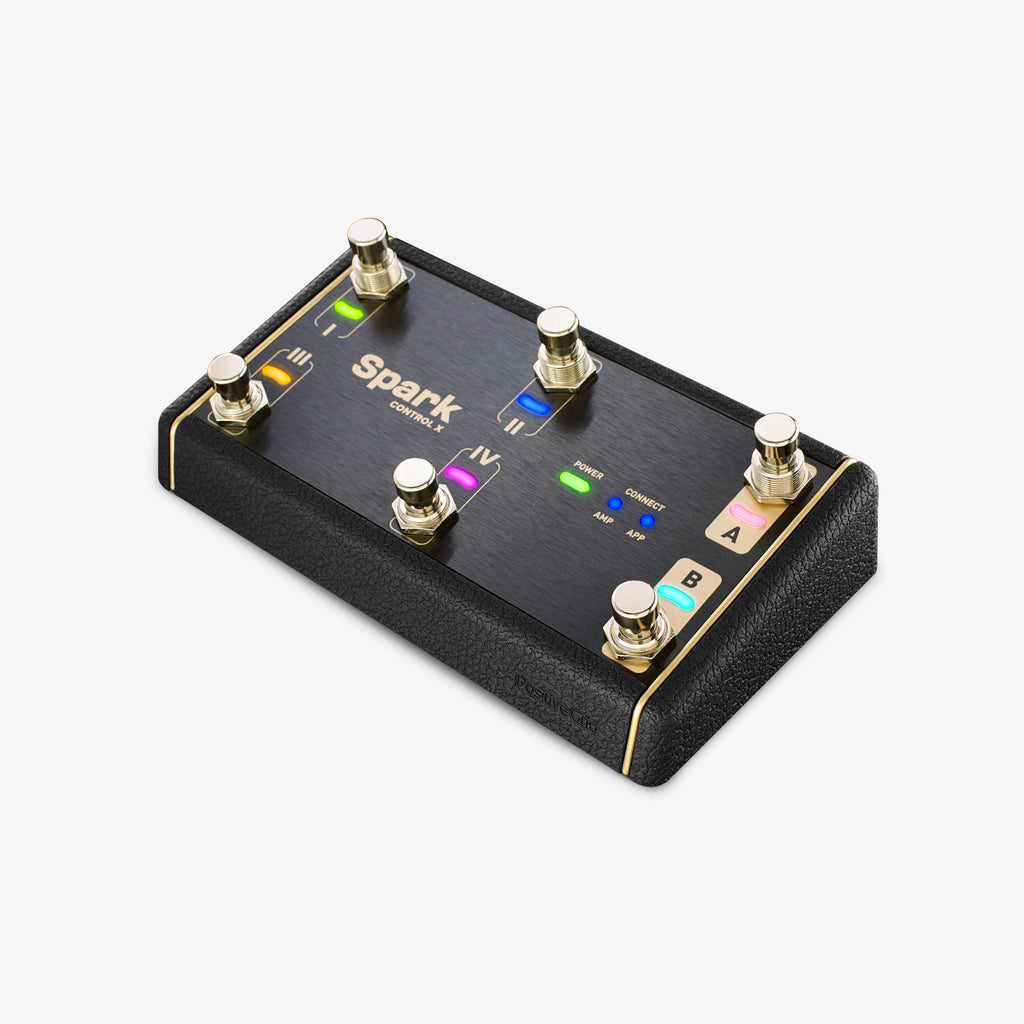

Crafted in a durable housing, Spark Control X is ready to endure relentless stomping during live gigs and studio sessions. A one-piece silicone cover also wraps Spark Control X, ensuring that it stays firmly anchored under your foot.
Power that lasts.
Equipped with a rechargeable battery, Spark Control X delivers up to 150 hours of playtime on a single charge. No more interruptions during rehearsals or performances—enjoy extended jam sessions without compromise.
All instruments welcome.

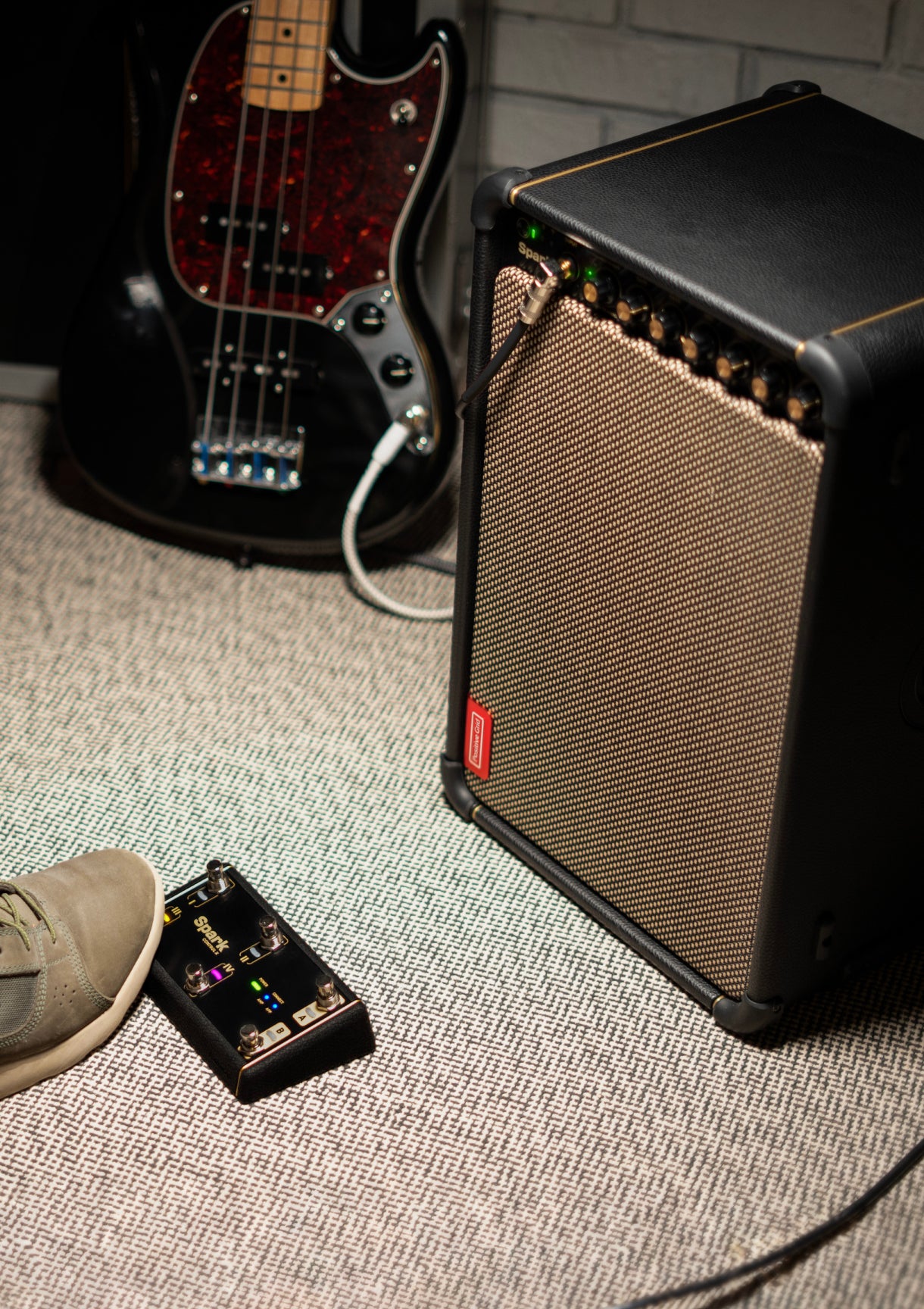

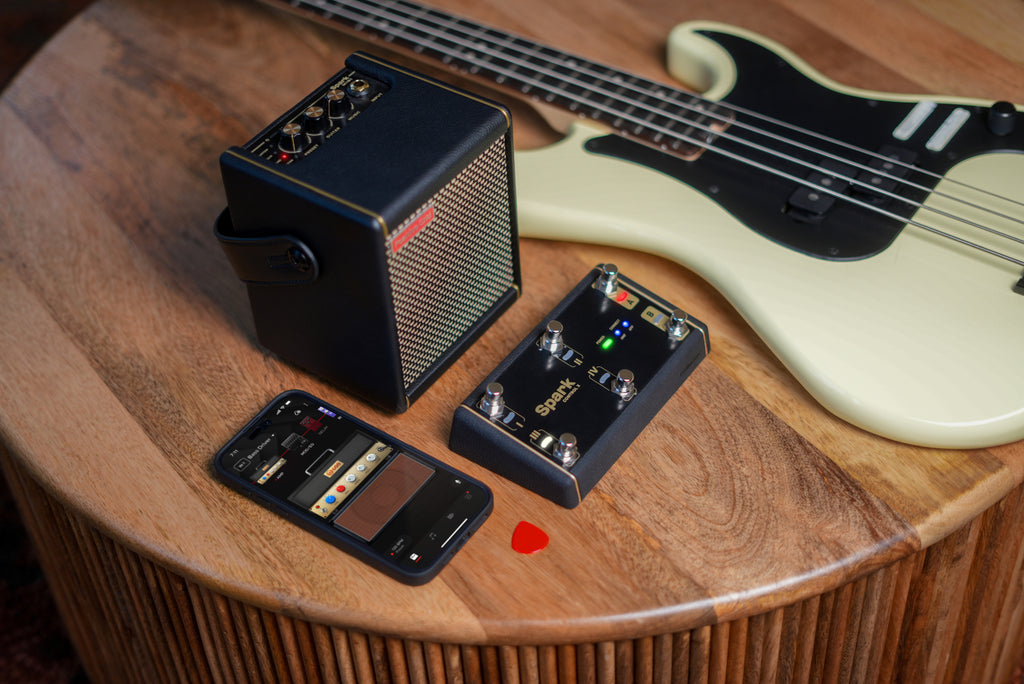

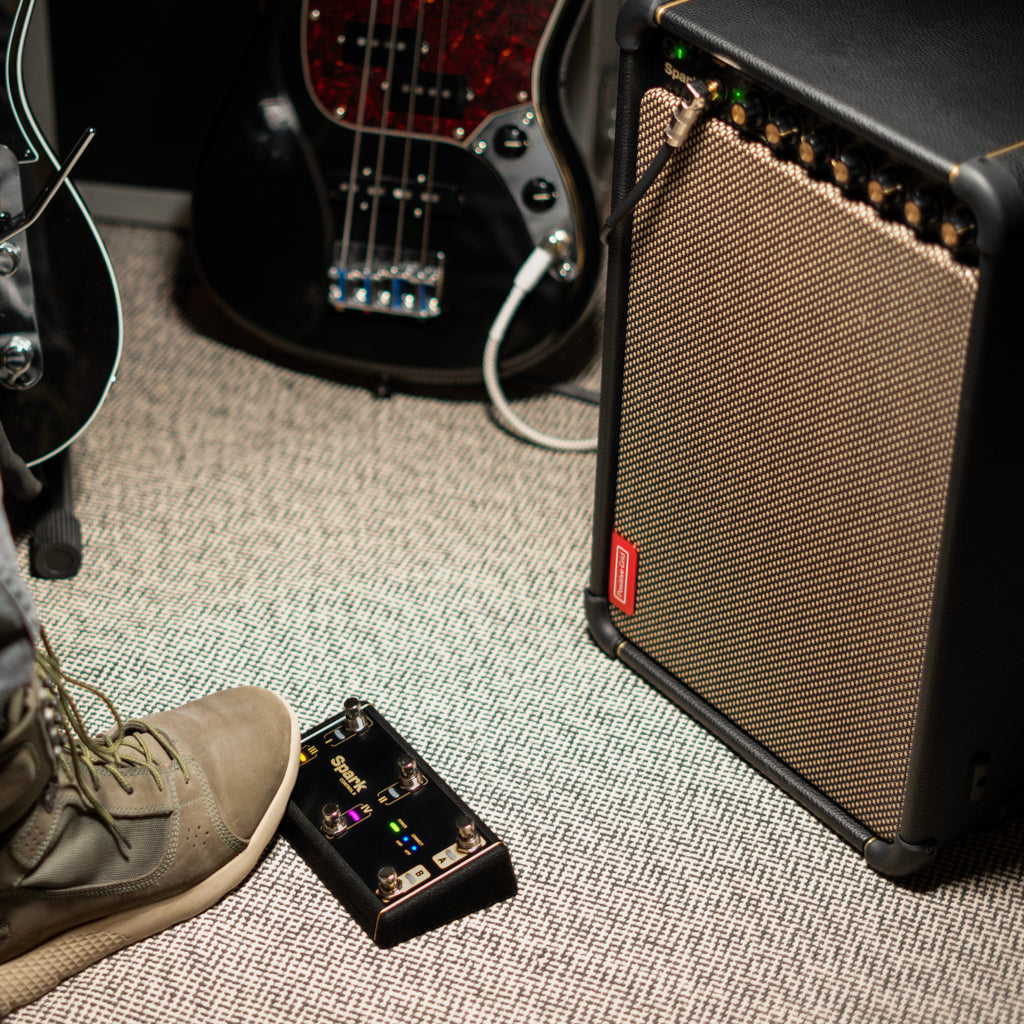

Get creative with your instrument of choice without interruption. Electric guitar, electric-acoustic, bass, and more, Spark Control X offers full, hands-free control over your Spark series amp no matter what you play.
Maximum control.
¹ Expression pedal not included.
² Requires Experience Jimi Hendrix™ Official Gear Collection
* Spark Control X is only compatible with Spark series guitar amps.
SPECS
CONTROLS AND CONNECTIVITY
TOP PANEL CONTROLS & DISPLAYS
6 x Steel Foot Switches
6 x Foot Switch Indicators (Multiple Color LEDs)
1 x Power Indicator (To display the battery level and power)
2 x Connection Indicators

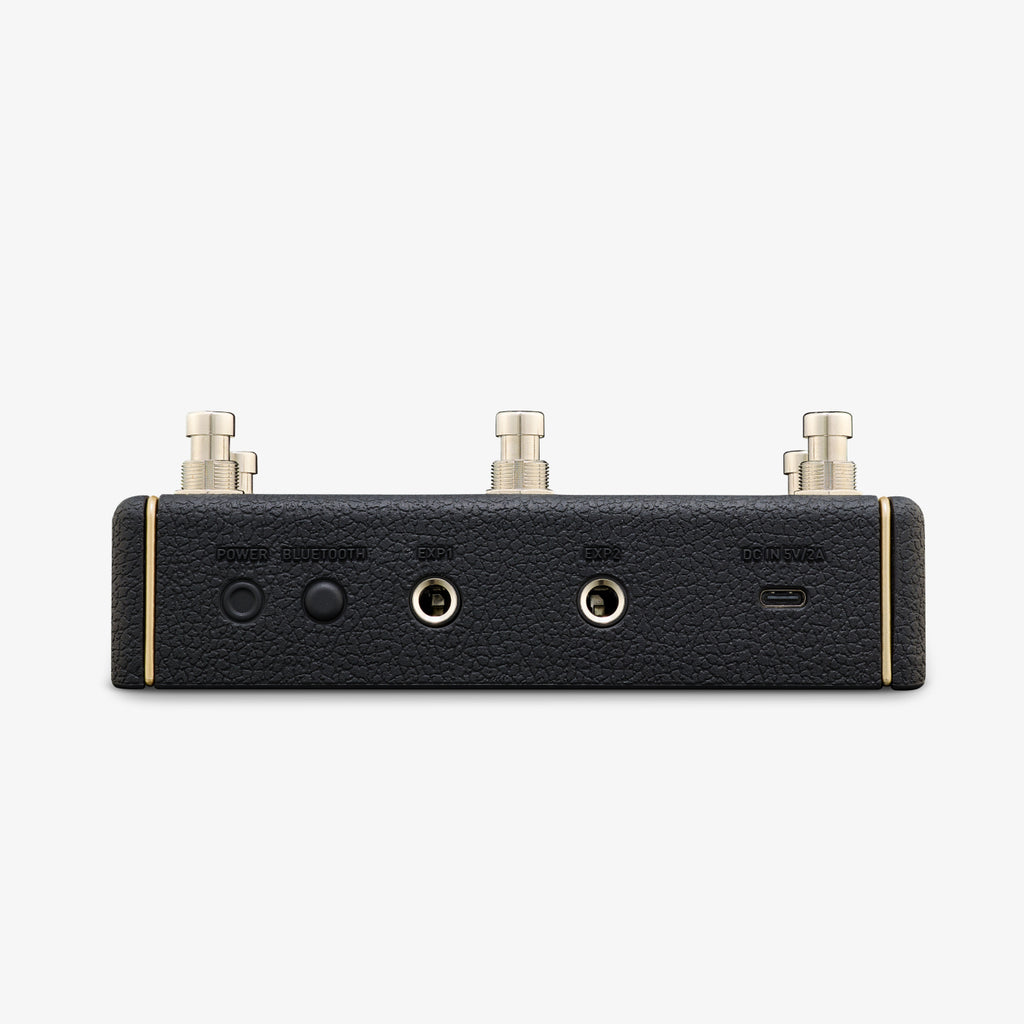

REAR PANEL CONTROLS
Power Button
Pair Button
DEFAULT PROFILES
Profile 1 - Preset Mode (To switch the Spark amp presets)
Profile 2 - Stompbox Mode (To toggle the effects)
WIRED CONNECTIVITY
2 x ¼” Expression Pedal Jacks
1 x USB-C Port (For charging and data transmission)
WIRELESS CONNECTIVITY
Bluetooth 5.0
TRANSMISSION RANGE
Up to 55 feet line-of-sight (17 meters)
TOP PANEL CONTROLS & DISPLAYS
6 x Steel Foot Switches
6 x Foot Switch Indicators (Multiple Color LEDs)
1 x Power Indicator (To display the battery level and power)
2 x Connection Indicators
REAR PANEL CONTROLS
Power Button
Pair Button
DEFAULT PROFILES
Profile 1 - Preset Mode (To switch the Spark amp presets)
Profile 2 - Stompbox Mode (To toggle the effects)
WIRED CONNECTIVITY
2 x ¼” Expression Pedal Jacks
1 x USB-C Port (For charging and data transmission)
WIRELESS CONNECTIVITY
Bluetooth 5.0
TRANSMISSION RANGE
Up to 55 feet line-of-sight (17 meters)
PHYSICAL UNIT
DIMENSIONS
L 162.9 x W 90.9 x H 36.8 mm (Switch excluded) / H 54.8mm (Switch included)
(L 6.41 x W 3.57 x H 1.44 inch / H 2.15 inch)
WEIGHT
0.45 kg
0.99 lb
DIMENSIONS
L 162.9 x W 90.9 x H 36.8 mm (Switch excluded) / H 54.8mm (Switch included)
(L 6.41 x W 3.57 x H 1.44 inch / H 2.15 inch)
WEIGHT
0.45 kg
0.99 lb
INCLUDED IN THE BOX
BOX CONTENTS
Spark Control X
USB A to C Cable
Overlays x 3
Quick Start Guide
Safety Instructions
BOX CONTENTS
Spark Control X
USB A to C Cable
Overlays x 3
Quick Start Guide
Safety Instructions
POWER
MAIN INPUT POWER
DC 5V/2A (USB)
BATTERY TYPE
Built-in 750mAh rechargeable lithium-ion battery
PLAY TIME
Up to 150 hours
CHARGING TIME
7.5 Hours
MAIN INPUT POWER
DC 5V/2A (USB)
BATTERY TYPE
Built-in 750mAh rechargeable lithium-ion battery
PLAY TIME
Up to 150 hours
CHARGING TIME
7.5 Hours
SOFTWARE
MOBILE APPS
Spark App for iOS and Android
iOS App: Learn more
Supported iOS version: iOS 12 or later
Android App: Learn more
Supported Android OS version: Android 8.1 or later
Control X Software:
Customize and assign commands for each footswitch
Customize up to 8 profiles
MOBILE APPS
Spark App for iOS and Android
iOS App: Learn more
Supported iOS version: iOS 12 or later
Android App: Learn more
Supported Android OS version: Android 8.1 or later
Control X Software:
Customize and assign commands for each footswitch
Customize up to 8 profiles
VIDEOS
Spark Control X - Wireless Foot Controller
Spark Control X - Quick Start Guide
FAQS
General
What is Spark Control X?
Why do I need Spark Control X?
Spark Control X allows you to control your Spark amps wirelessly. Seamlessly change between presets, toggle amps and effects on/off, start and stop backing tracks, and more. Spark Control X is plug and play with the Spark amp series, so you don’t have to worry about programming it with your favorite Spark parameters. Just connect and go.
Does Spark Control X work with my current Spark amp?

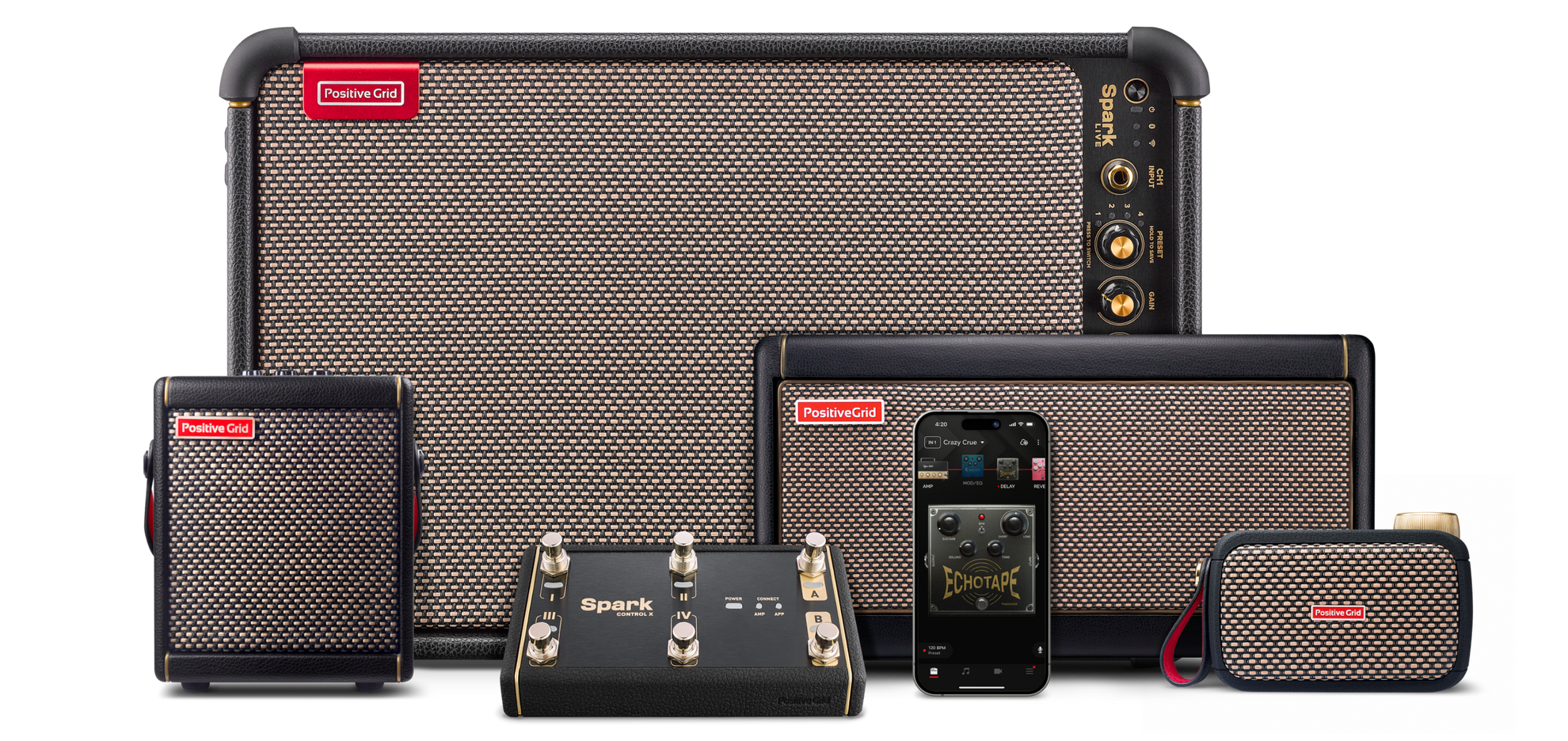

Spark Control X works with all Spark amp series including Spark, Spark MINI, Spark GO, Spark LIVE, Spark MINI Vai, Spark 2 and Spark EDGE.
How long does the Spark Control X rechargeable battery last?
It lasts for up to 150 hours with a single charge.
Do I need the Spark app to use the Spark Control X?
You need to pair the Spark Control X with the Spark app to control your Spark, Spark MINI and Spark GO. However Spark Control X works as a standalone foot controller for Spark LIVE. You can connect it directly to your Spark LIVE or adjust settings with the app.
What’s the difference between Spark Control X and Spark Control?
Spark Control X comes with 6 steel footswitches instead of Spark Control’s 4 footswitches. Also, Spark Control X works as a standalone foot controller for the Spark LIVE amplifier and adds multi-color LEDs for on/off status indication and 2 expression pedal inputs. Finally, Spark Control X comes with 3 transparent overlays that can be used to label functions assigned to the footswitches and can be swapped easily.
Can I control wah or volume with Spark Control X?
Yes, you can connect 2 expression pedals into Spark Control X to control effects like wah and volume.
Can I use Spark Control X to control BIAS software?
Spark Control X is not programmed to be utilized with BIAS software out of the box.
What kind of technical specs do Spark Control X have?
- 6 x Steel Foot Switches with responsive feel and quiet tactile function
- 6 x Foot Switch Indicators (Multiple Color LEDs)
- 2 x Expression Pedal Jacks
- 2 x Connection Indicators, 1 x Power Indicator (Multiple Color LEDs)
- Anti-dust(UV coating), scratch resistant sleeve
- Rechargeable battery, provides 150+ hours of play time with a single charge
- Bluetooth 5.0
- Max Range - 150+ feet
- 3 x Transparent Overlaps
- Ability to connect to Spark LIVE directly
- Ability to connect to Spark Amp and Spark App seamlessly
- Support OTA firmware update (Over-The-Air, update firmware via Bluetooth)
- Compatible with iOS, iPadOS, and Android OS
- Dimensions: L 6.41 x W 3.57 x H 1.44 inch / H 2.15 inch
What type of battery does Spark Control X use?
Spark Control X uses a 3.7V / 750mAh li-ion battery.
What can Spark Control X switches do?
Each footswitch can assign and change presets, assign and toggle effects, start/stop/pause music for backing tracks and Smart Jam, and control wah pedal in Experience Jimi Hendrix Expansion.
What else is included with Spark Control X?
Spark Control X includes a quick start guide, safety instructions, 3 blank overlays you can use to label your own settings, and charging cord.
Will Spark Control X be available in my country?
Currently, Spark Control X is available directly from our website in the US, EU, UK, Canada, and Australia. Additionally, you might find Spark Control X at a select local retailer in your area. Feel free to use our store locator to check for nearby outlets.
How long do I need to wait to receive Spark Control X after I place my order?
The delivery time depends on your location. Shipping estimates will be displayed on the checkout page. Shipping estimates will be displayed on the checkout page and will also be displayed in the My Orders section of your account page.
